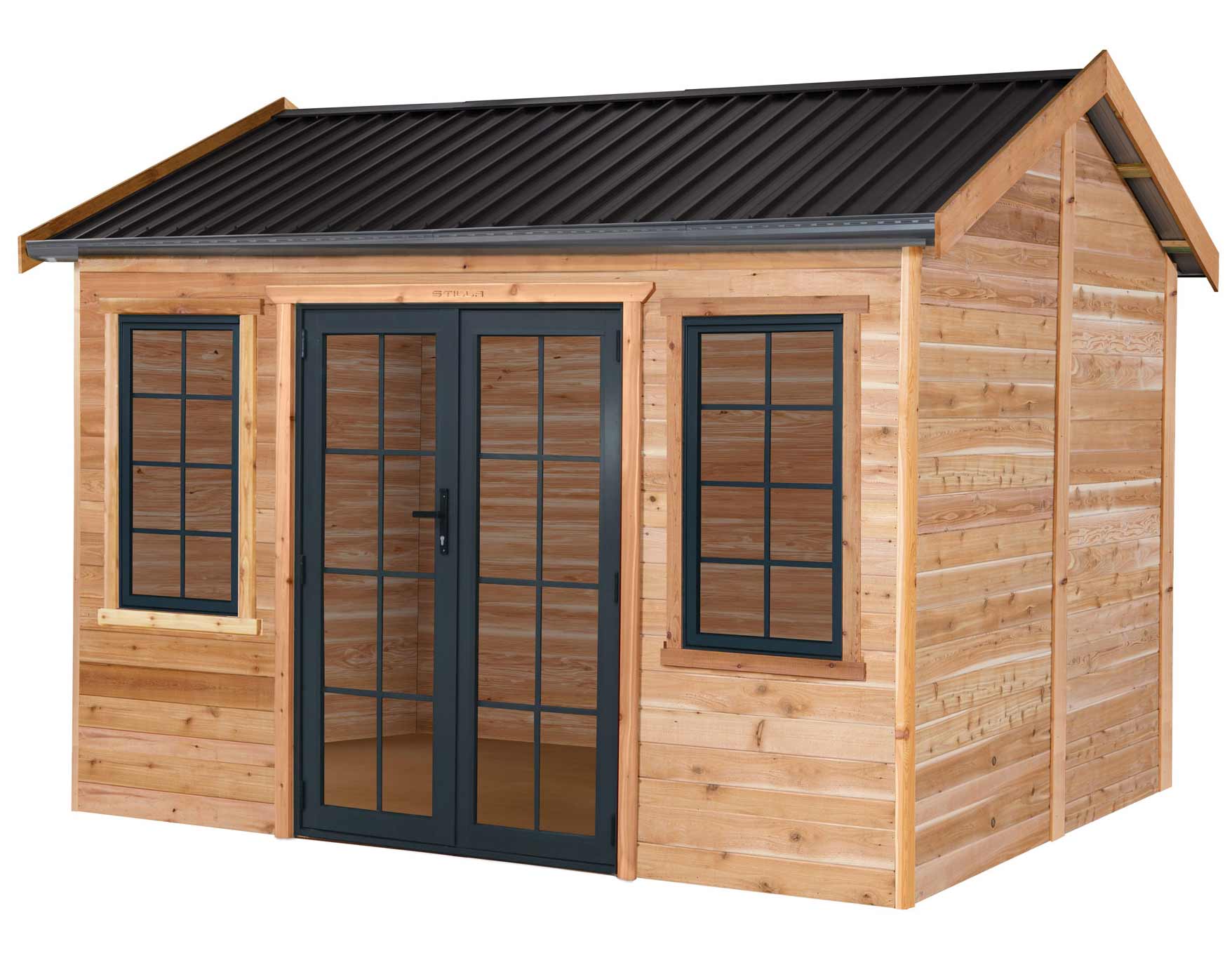

KENSINGTON STUDIO 12’x10′

Description

The main features at a glance:

• Stegbar glass and aluminium windows and doors, made in Australia
• Taller 2.16m wall height
• Guttering included
• Available pre-painted in 4 combinations or in 2 raw-cedar combinations
• 70 x 35mm wall framing
• Easy DIY assembly or book one of our installers
• 20 year, industry leading warranty

Overview:

This premium cedar-timber retreat is the offers space for a home office, guest suite, hobby/craft room or multi-purpose area. It combines natural warmth and sophisticated finishes with functional build quality — designed to both look beautiful and perform reliably over time.

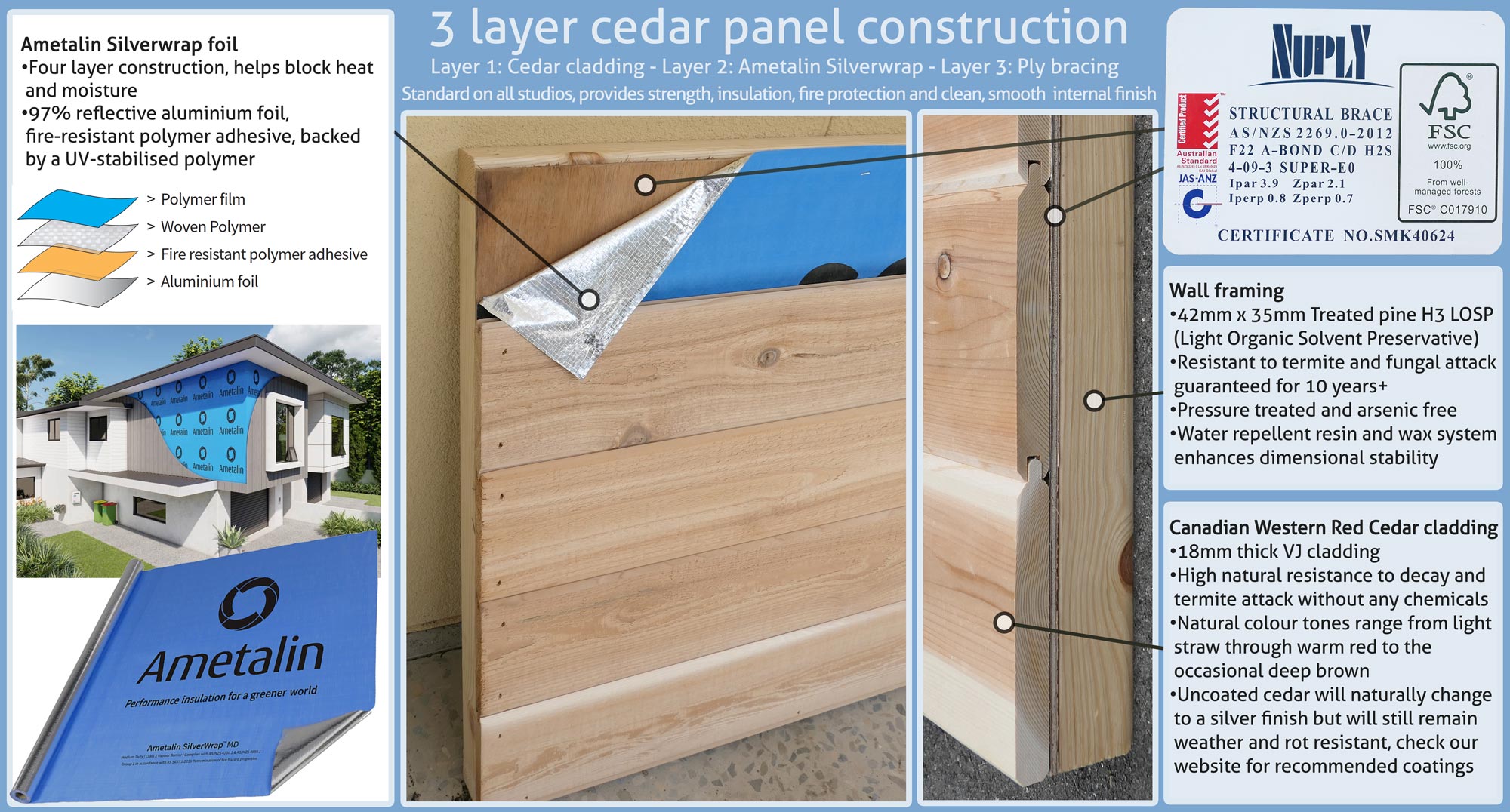

The wall panels consist of a 3 layer, “sandwiched” panel system – cedar then foil then hardwood ply with treated pine framing. This improves strength, with an amazing 219kmh wind rating and insulation against moisture / heat plus gives a smooth surface on the inside of the studio making it easier to paint if you decide not to line the walls.

Key Features:

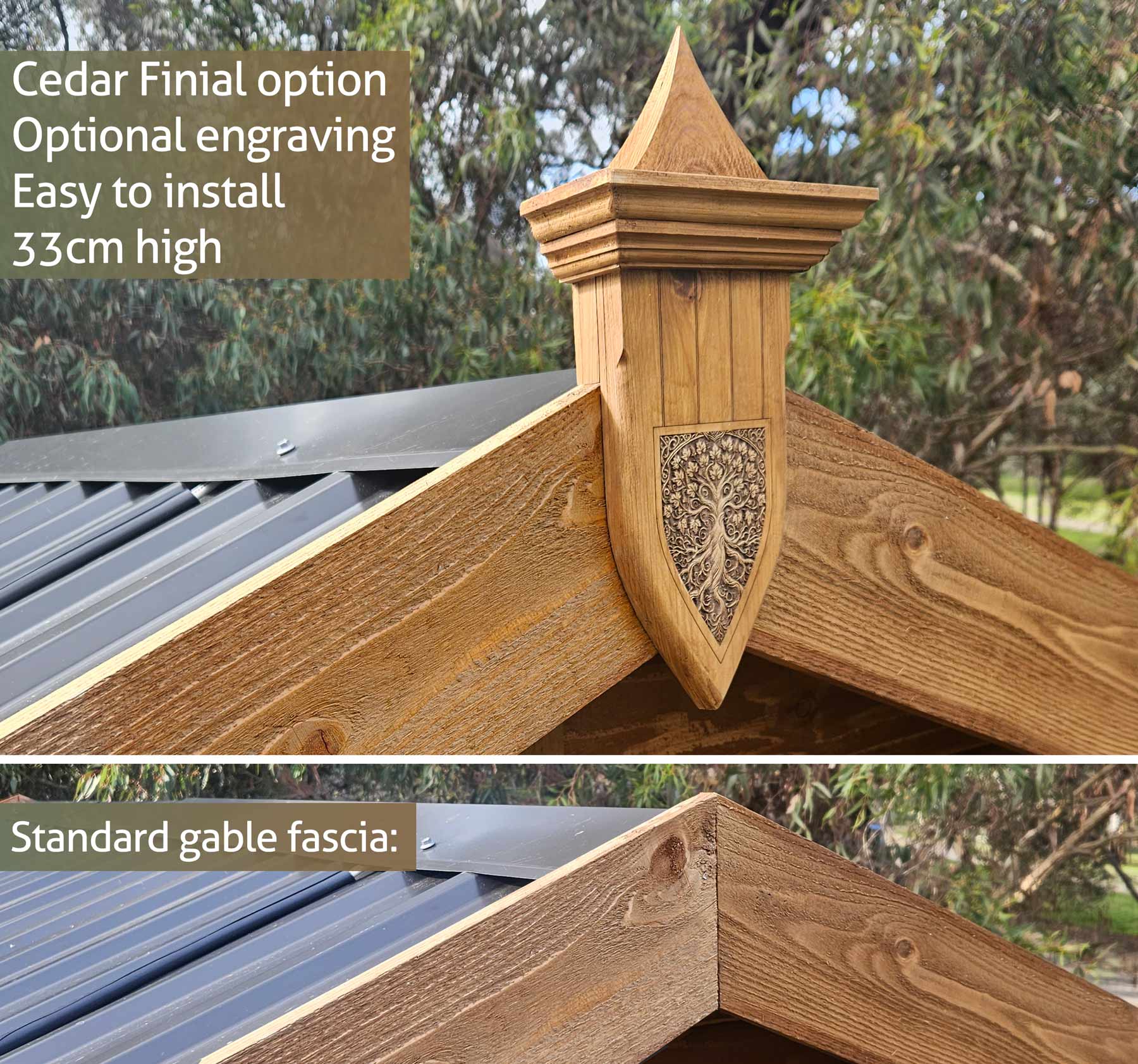

• Classic gable-roof design with overhanging eaves and built-in gutters

• External cladding: 18 mm Western Red Cedar V-Joint (VJ) boards, giving real timber character

• Framing: 70 × 35 mm H3 LOSP (chemically treated) pine for durability and termite resistance

• Wall height: 2.16 m  — generous head-room for comfort and usability

• Roof: Colorbond® steel, with insulation

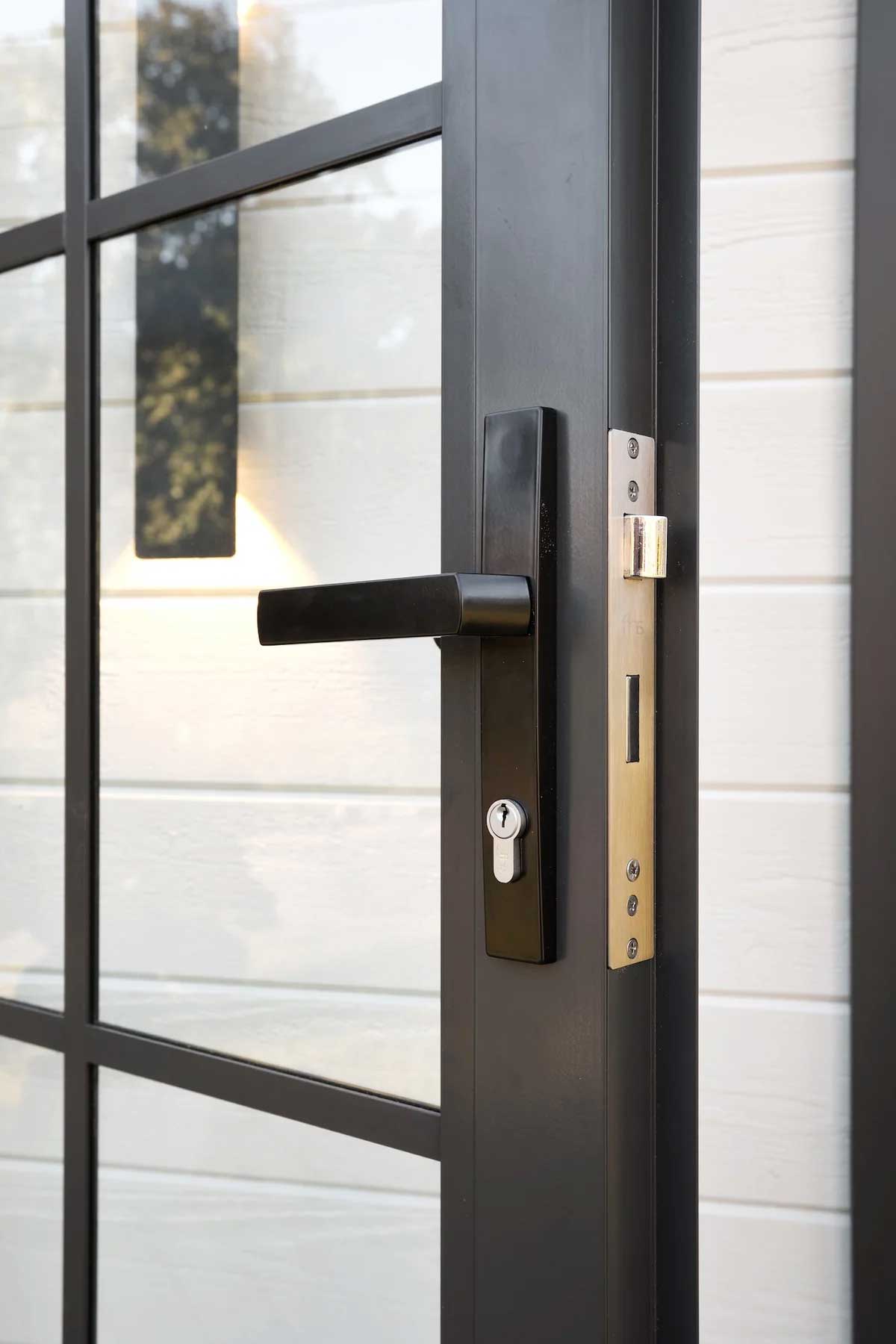

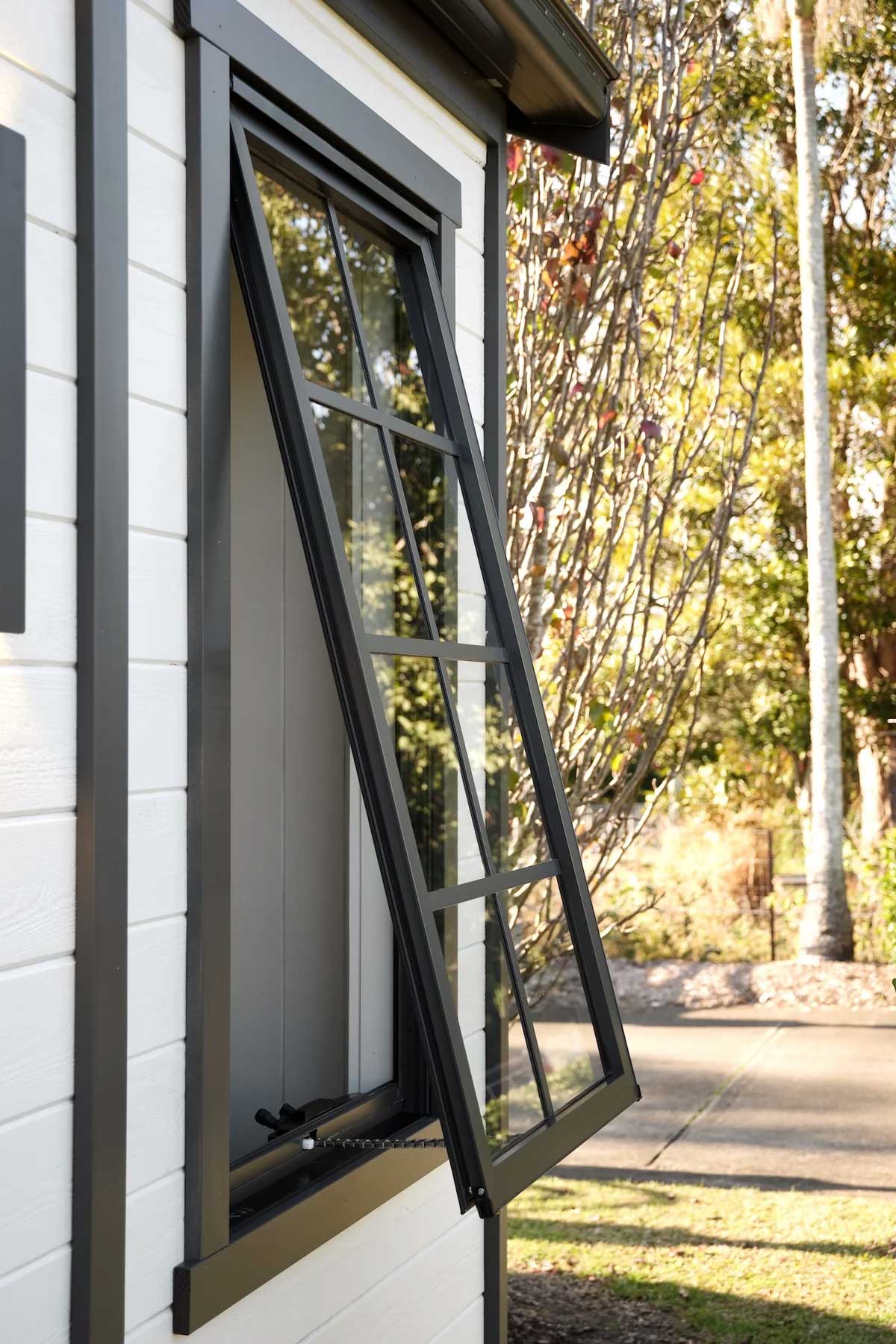

• Doors & windows: Premium aluminium double doors (glass insert) + two aluminium & glass awning windows — all lockable with quality hardware

• Panels supplied pre-assembled for easier DIY setup

• Supplied standard without internal floor; sub-floor kit available as optional extra

• Engineered for Australian conditions, including stability on uneven ground via optional raised sub-floor posts or direct slab installation

• Delivery Australia-wide (excluding very remote/island areas)

Construction & Specification Highlights:

• External of frame dimensions: 3600 x 3140 (Front x Side) (Use this size for a slab. This will make slab slightly smaller than outside of walls, allowing rain to run off and not enter the studio)

• Internal Dimensions 3460 mm x 3000 mm x 2715 mm (Front x Side x Height)

• External of cladding: 3648 mm x 3188 mm (Front x Side)

• Roof footprint: 3960 mm x 3488 mm x 2865 mm (Front x Side x Peak Height)

• Door opening: 1910 mm H × 1380 mm W

• Standard wall height: 2160 mm

• Colorbond MONUMENT or SURFIMIST roof, door and window colours as standard, optional roof colours also available

• Wind rating: Cyclone rated! W60 / N4 / C2 – 60m sec or 219 kmh winds

• Canadian Western Red Cedar 18mm thick VJ cladding
• 10 year warranty
• NOTE: WA, Qld, Vic and SA buyers, please check with your council before purchase, this studio is over 10 square metres. We recommend installing this as a “shed”.

Finish & Colour Options:

You may choose from six stylish combinations: four factory-pre-painted colourways, or two in raw cedar. This allows you to either enjoy the natural cedar finish or match the studio exterior to your home. Roof and wall colours are selectable; custom roof colours may also be accommodated for an additional cost.

Why It’s a Smart Addition:

• Adds value to your home: Real-estate agents often recognise cedar studios as premium additions

• Flexible installation: Can be installed on a concrete slab or raised on treated pine posts to suit all terrain

• Natural durability: Cedar is inherently termite-resistant; treated pine framing further enhances longevity

• Enhanced living space: With taller ceilings, premium doors and windows, and quality finishes, the studio provides a comfortable, refined space rather than a basic shed

Optional Extras You May Consider:

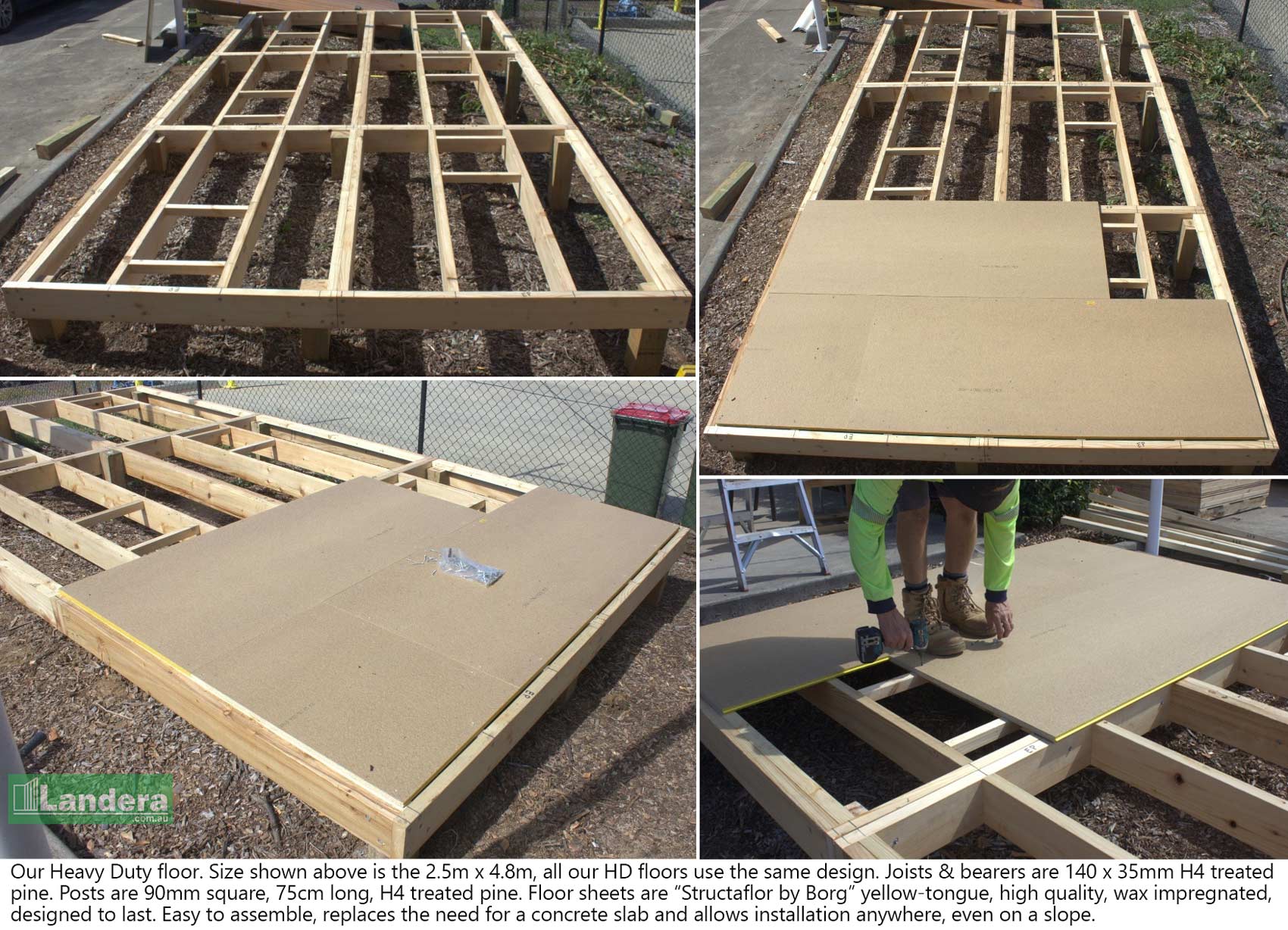

• Sub-floor kit (treated pine joists + yellow-tongue flooring) — ideal for sloped sites or raised installation

• Extra windows for extra natural light or scenic views

• Additional doors (single or double) to tailor access

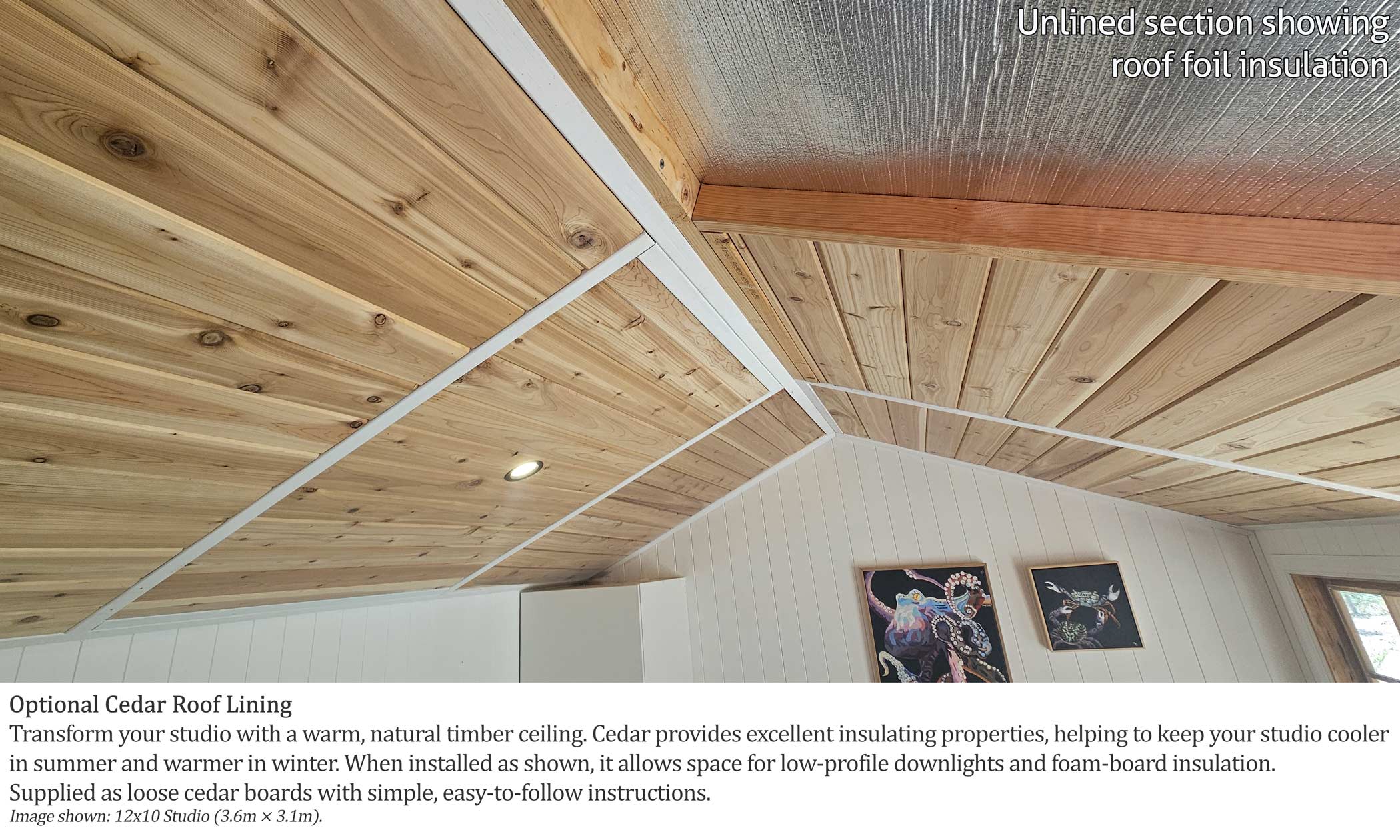

• Cedar roof lining for a premium timber-finish interior

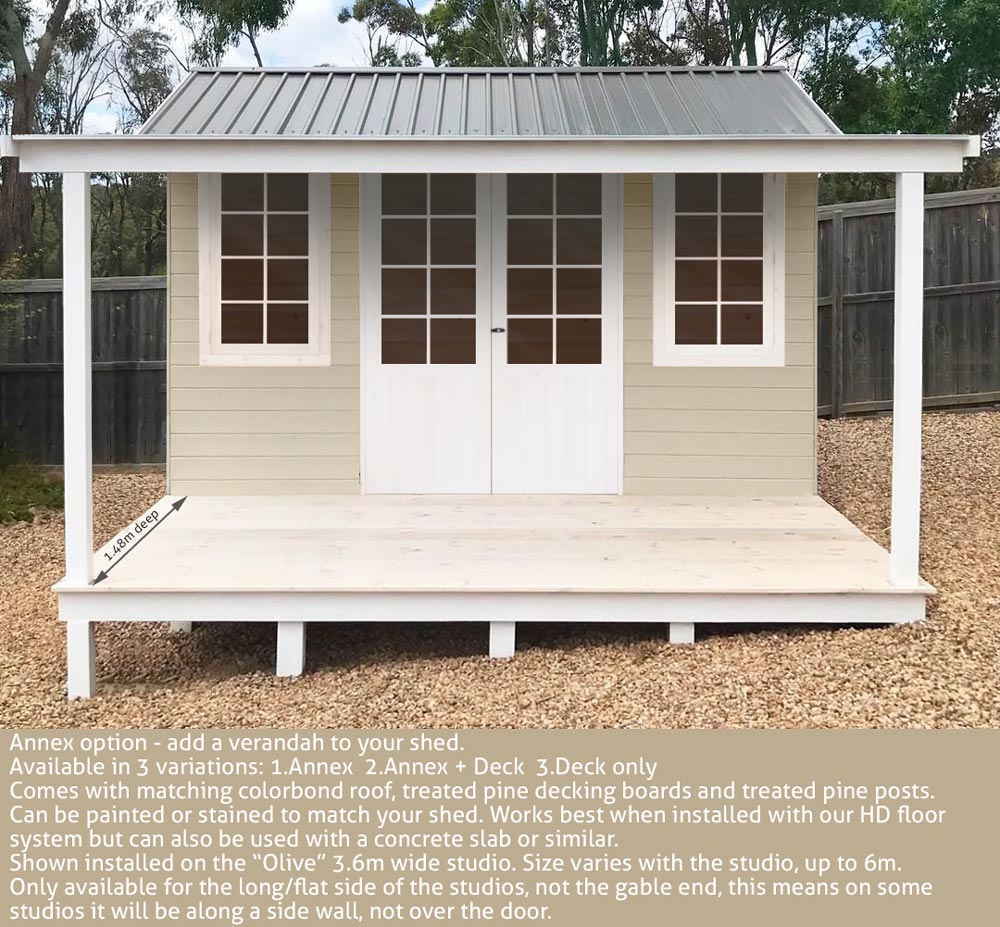

• Deck and annex, to create a seamless indoor-outdoor extension

• Upgraded roof colour to enhance performance and aesthetics

Installation & Maintenance Notes:

• Clear and level site recommended; if ground is uneven the sub-floor kit will allow levelling via 75 cm treated stumps

• Maintenance for cedar: If left untreated it will naturally age to a silvery grey. To retain fresh timber colour, staining (e.g., Intergrain Ultra Deck in Light Oak) or painting is recommended — if painting, under-coat with an oil-based primer first

Installation info: The unit can be sited on a concrete base or paved area, or the subfloor kit can be used. Assembly is quite straightforward – the first step is to choose a nice level site in your yard. The floor is a base constructed either using a recommended subfloor or by laying a concrete slab. If the site is out of level the subfloor can take care of that as it comes with 75cm H4 treated stumps. Once the floor is in position the next step is to erect the pre-made walls, the panels are joined together via timber Tek screws and gables fastened into position. The roof is then assembled on the ground, lifted into position and fastened to the walls, the roof panels on this range are in sections, making assembly easier and requiring less manpower. Next the pre-assembled aluminium doors are placed and fixed into position. Finally, the corner posts, cover strips, fascias and the ridge capping are attached to complete the product.

Warranty & Support:

• Built in Australia by an Australian-owned manufacturer

• Landera offers full install support and instruction for the DIY’er, we have many tips to help you get the best setup

• Comes with a 20-year warranty

• Professional installation available in key metropolitan areas

Summary:

If you’re looking for a high-quality, inviting additional space in your backyard that combines natural timber aesthetics with functional durability, the KENSINGTON Cedar Timber Studio delivers. With lockable aluminium doors and windows, quality framing and finishes, and a design that accommodates uneven sites, it’s more than a studio — it’s a lifestyle upgrade.
