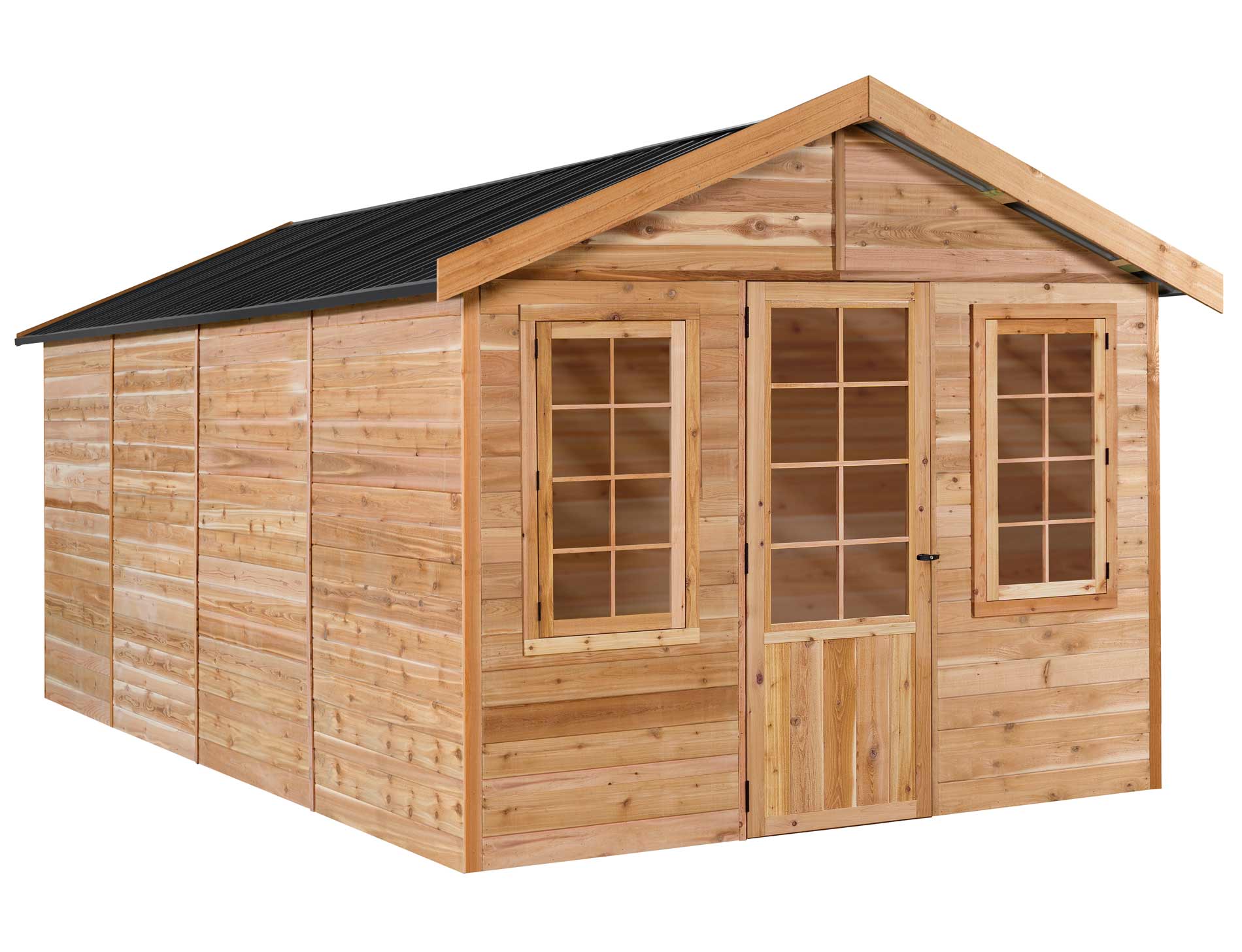

JACARANDA STUDIO 10’x20′

Description

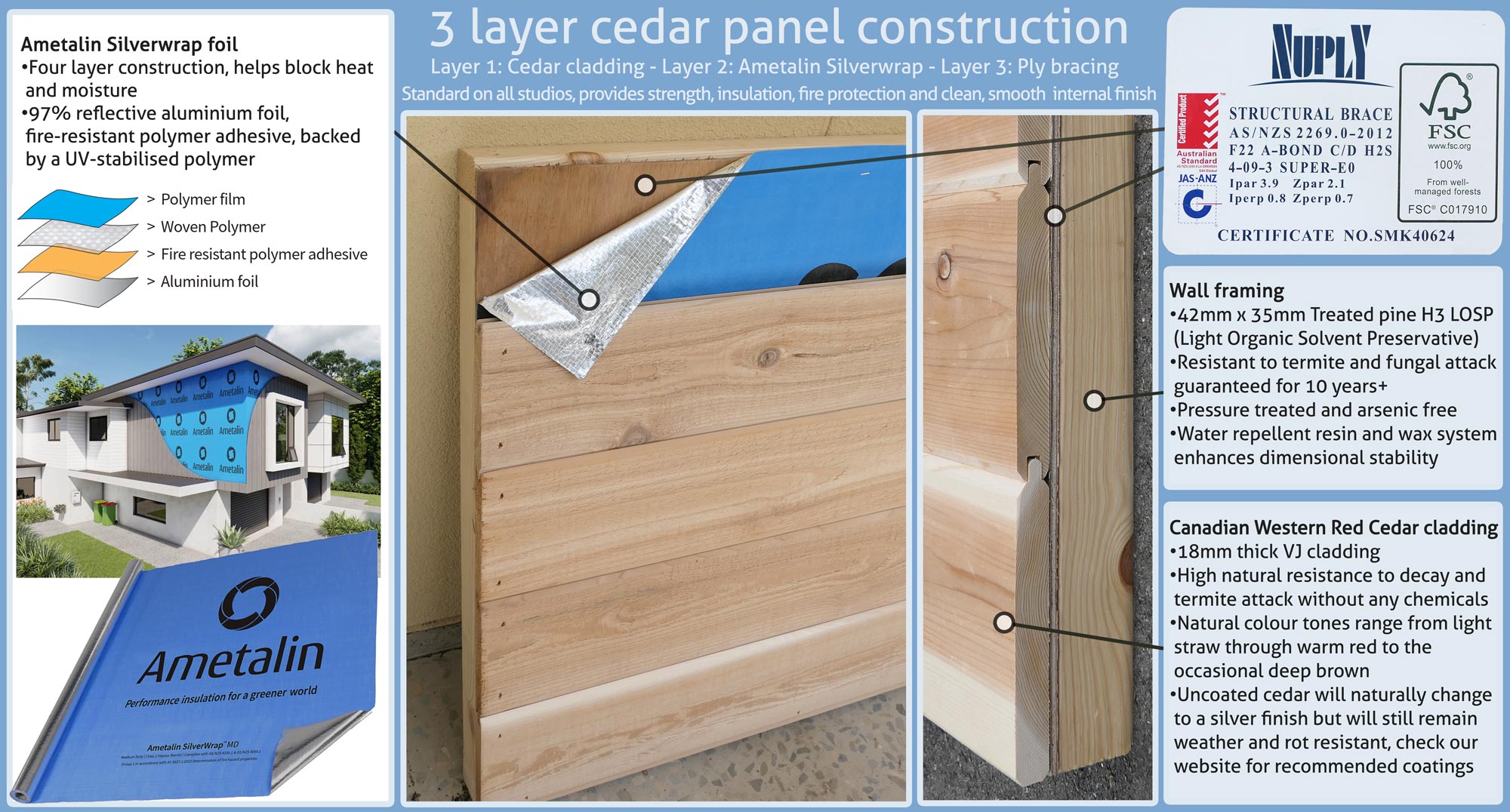

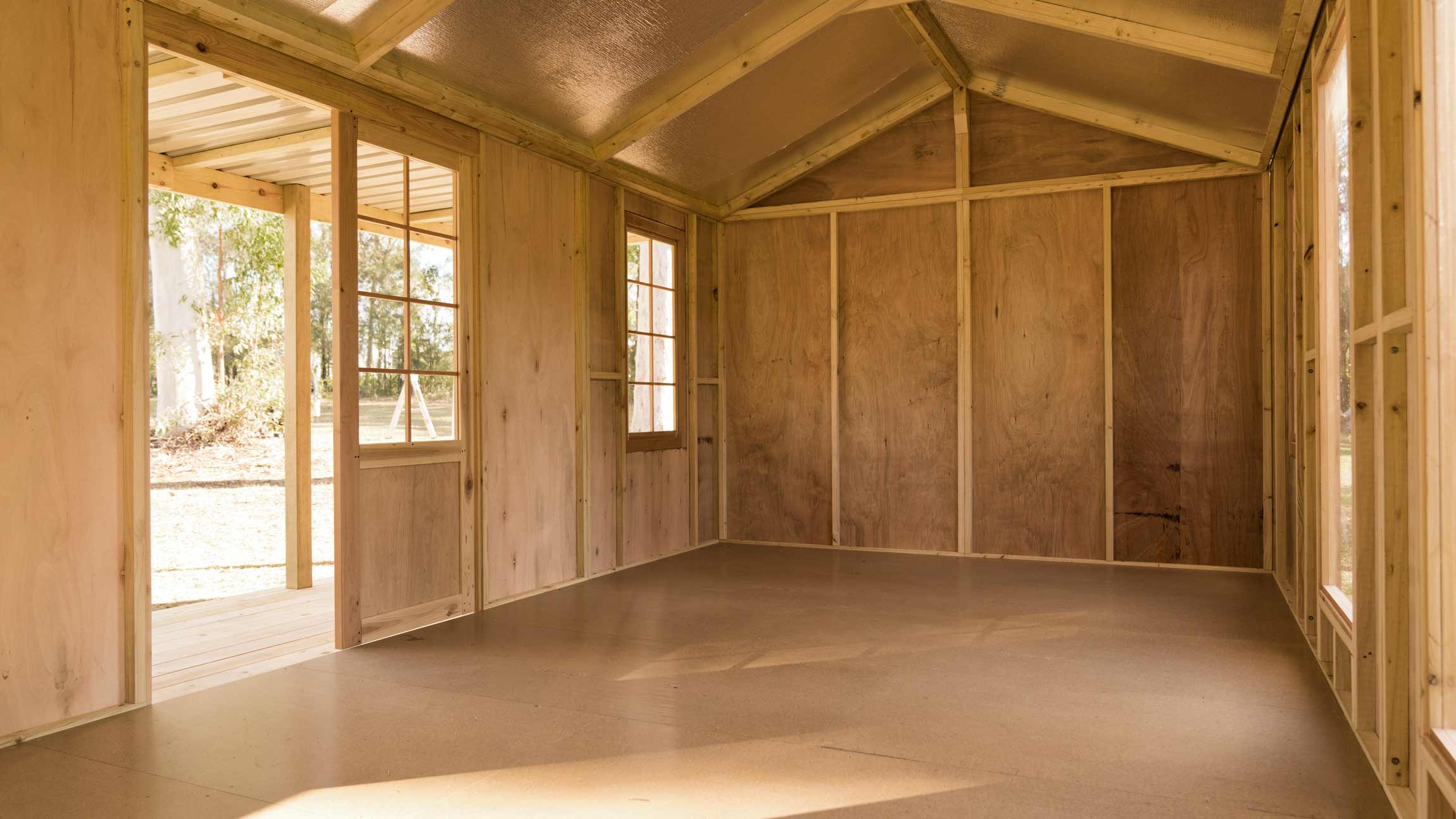

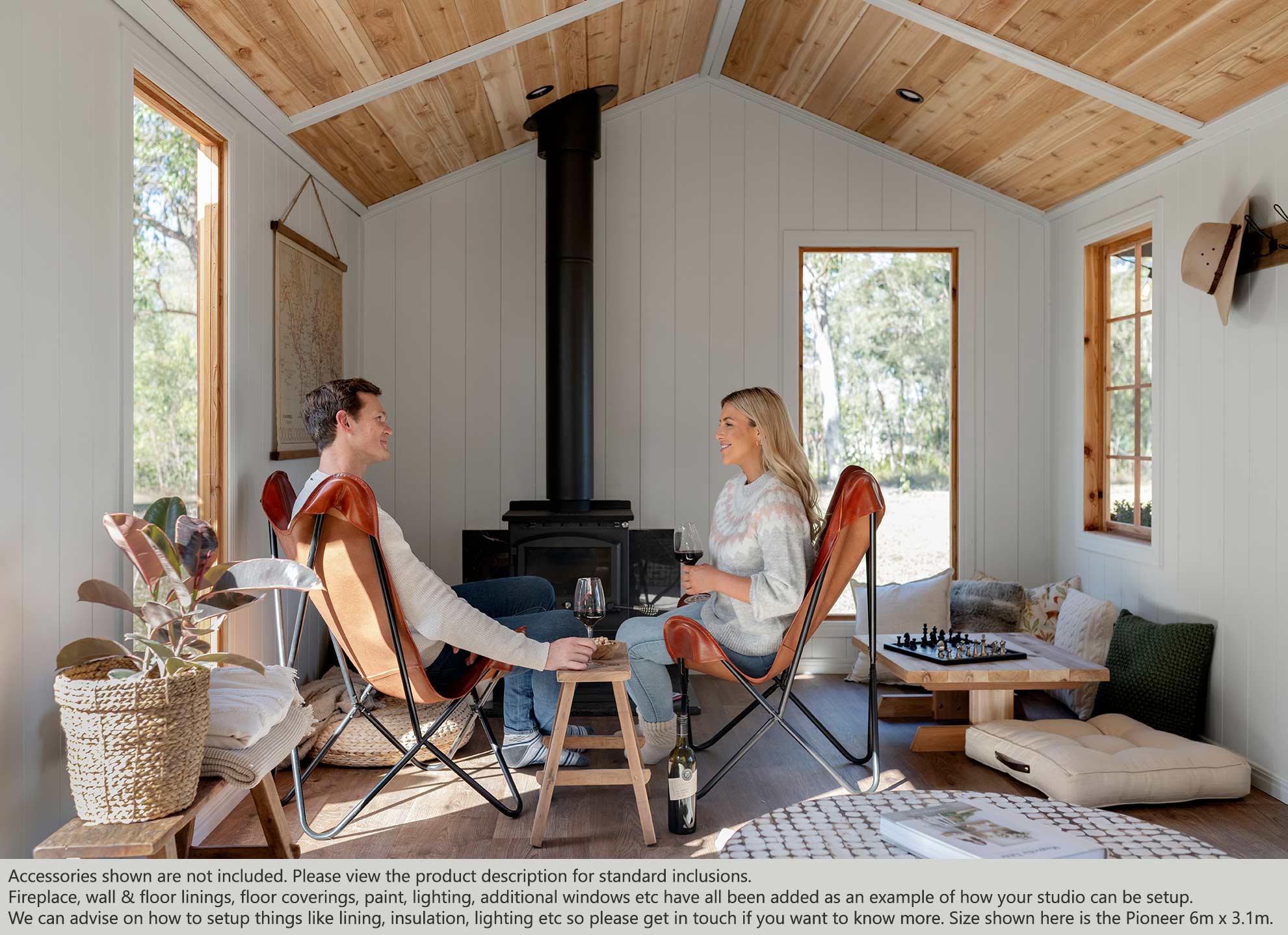

The JACARANDA STUDIO is designed to be an attractive addition to any property as well as providing a functional, long-lasting outdoor work space or hobby room. The JACARANDA STUDIO features a Colorbond gable roof with overhanging eaves, colonial style door with tinted acrylic glazing and a locking T-handle. Twin Opening Windows are supplied as a standard feature. The wall panels consist of a 3 layer, “sandwiched” panel system – cedar then foil then hardwood ply with treated pine framing. This improves strength, insulation against moisture / heat plus gives a smooth surface on the inside of the studio making it easier to paint.

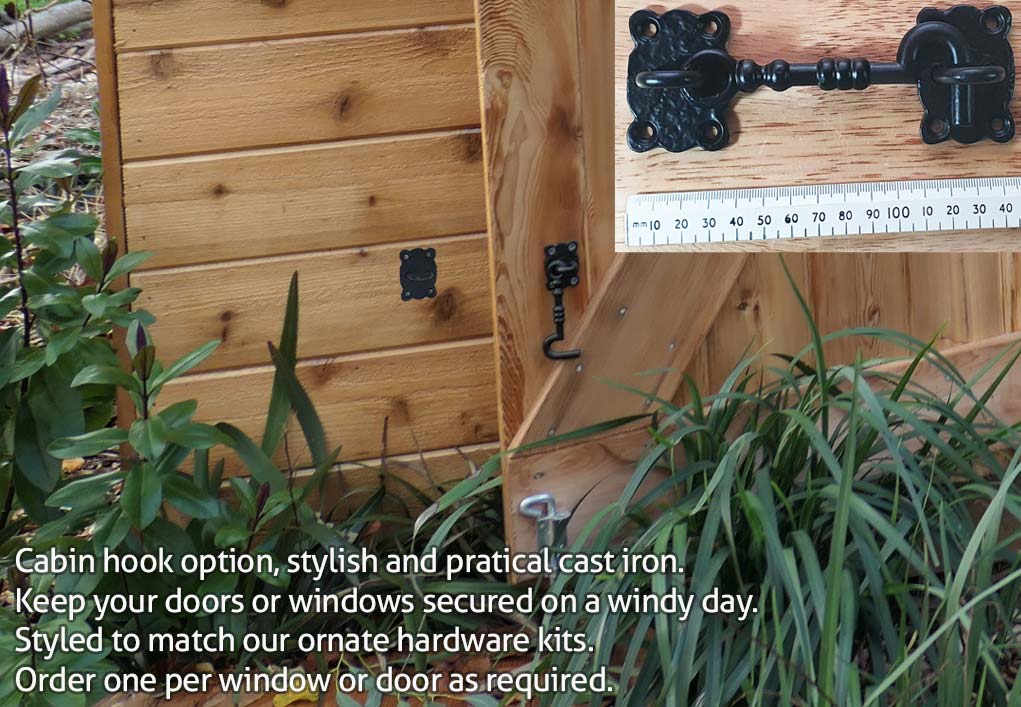

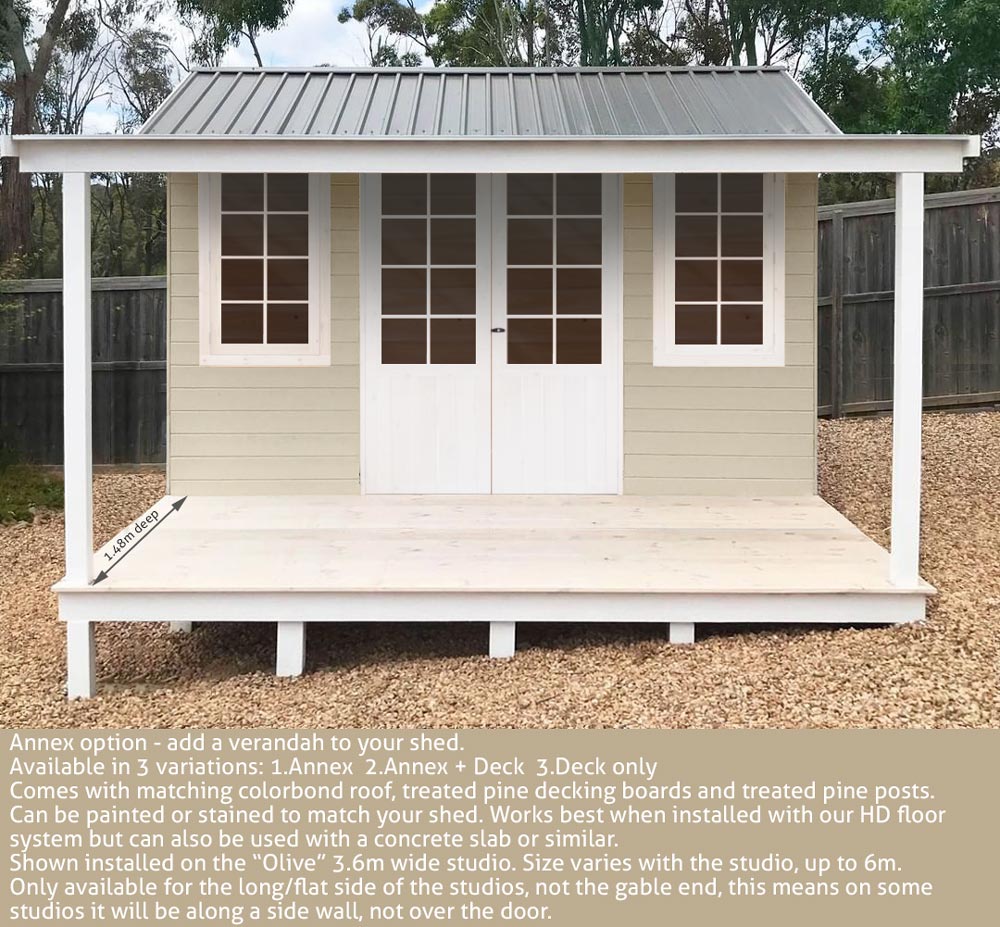

Options including extra windows, extra doors, deck plus annex roof, ornate wrought iron hardware, as well as a full flooring kit are available. Talk to us about possible installers in your area also.

Our CEDAR STUDIO range is manufactured in Australia, and is constructed using 42 x 35mm termite resistant pine framing and 18mm thick Canadian Western Red Cedar VJ cladding with a Colorbond steel roof. The JACARANDA is supplied in an easy to assemble kit with pre-made panels. The panels come in raw timber (not stained or painted) allowing you to select the finish of your choice. Check the bottom of this page for more cedar coating information.

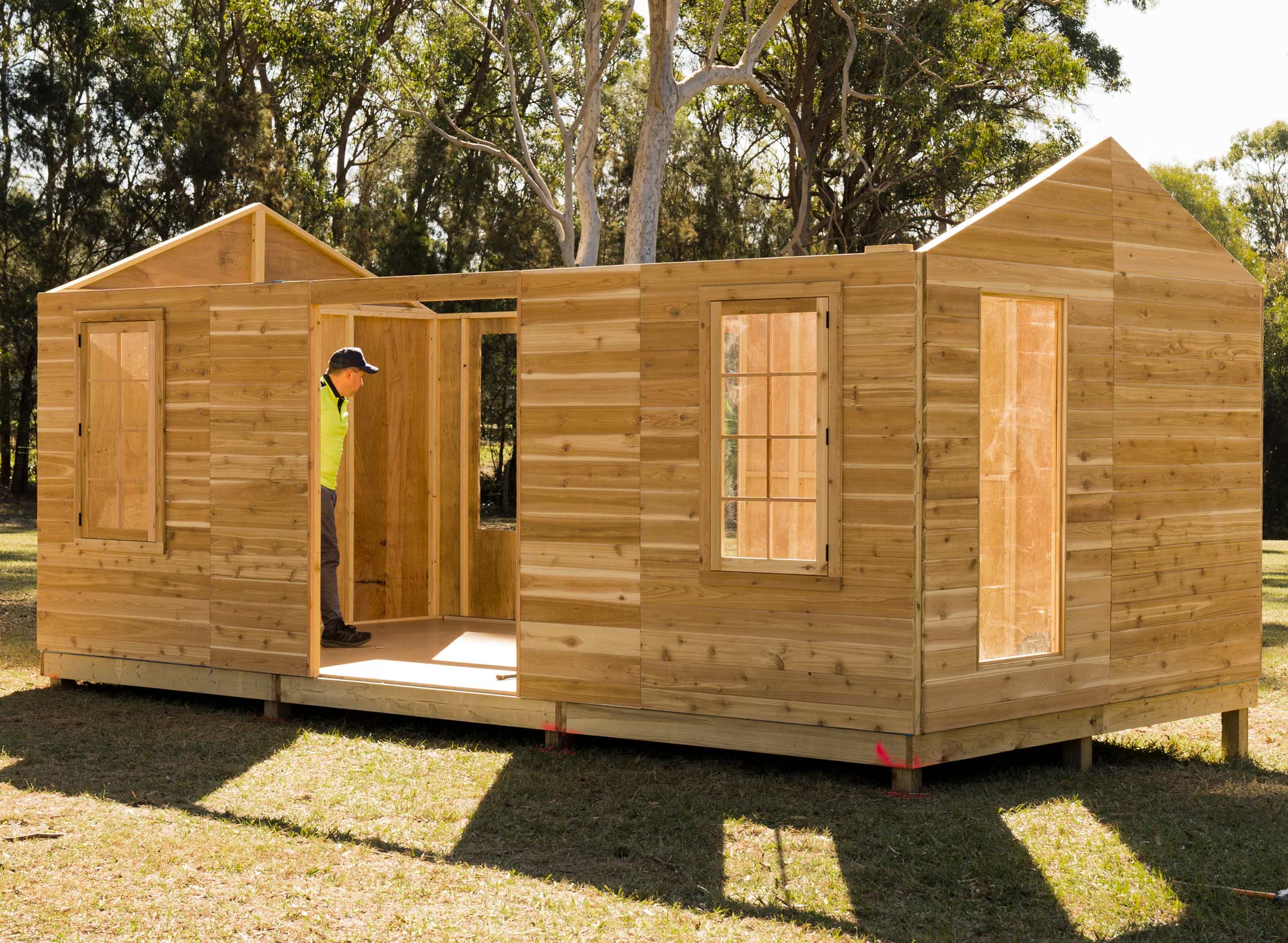

Typically time required for assembly is about 10 to 12 hours, excluding the floor. The unit can be sited on a concrete base or paved area, or a flooring kit can be used. Assembly is quite straightforward – the first step is to choose a nice level site in your yard. The floor is a base constructed either using a recommended HD floor or by laying a concrete slab. If the site is out of level a good option to consider is the heavy duty floor kit. This has been specifically designed to reduce site works where the ground is not level. Once the floor is in position the next step is to erect the pre-made walls. Starting at the front corner, the panels are joined and gables fastened into position. The roof is then assembled on the ground, lifted into position and fastened to the walls. Next the hinges are attached to the door, the door fastened to the wall and the door handle installed. Finally, the corner posts, cover strips, fascias and the ridge capping are attached to complete the product.

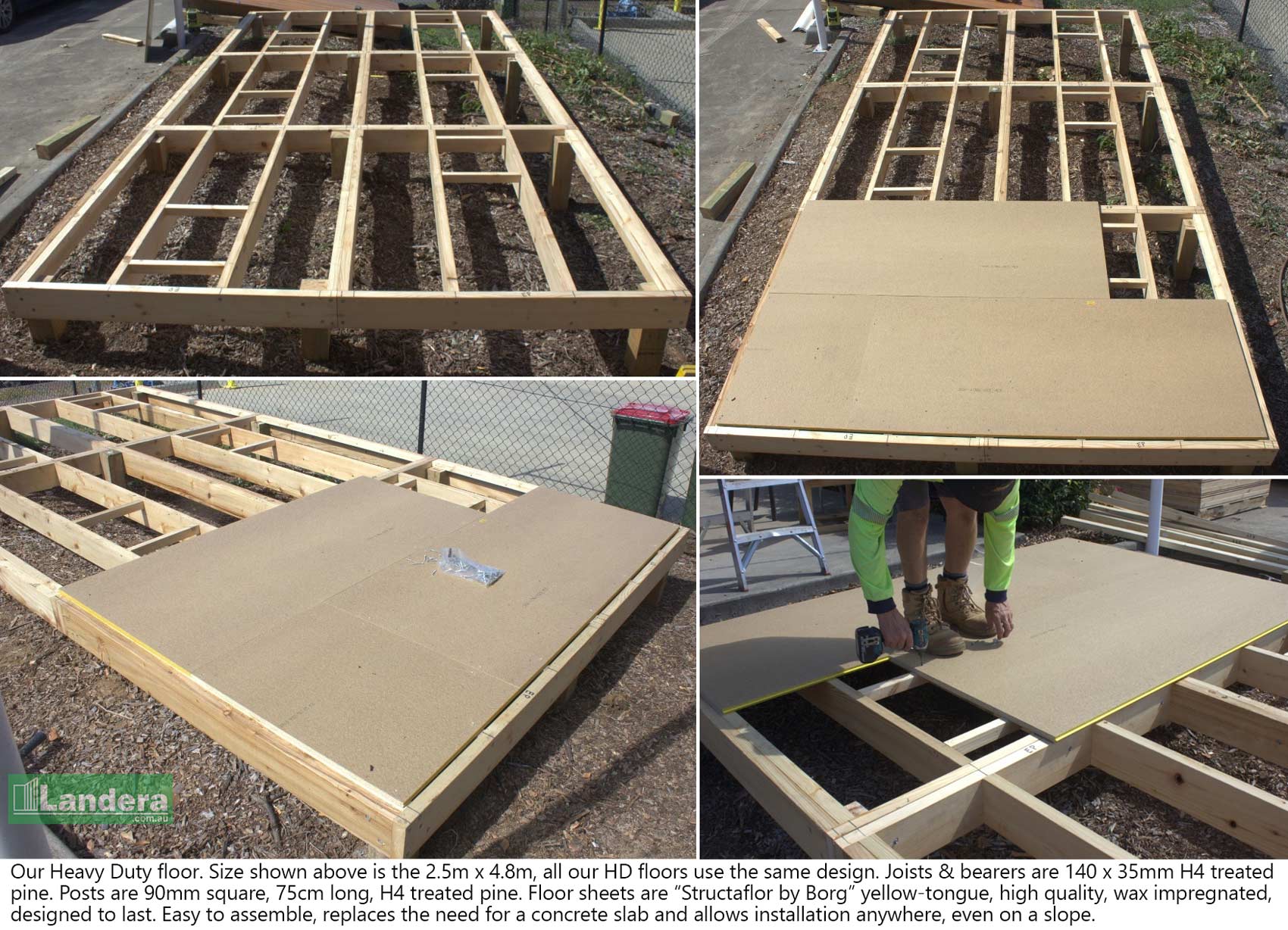

The JACARANDA STUDIO is supplied standard without a floor. A Heavy Duty Floor Kit is available as an optional extra, this includes tough, Yellow Tongue flooring sheets as the finished surface. The Heavy Duty Floor Kit provides for installation without the need for a prepared base such as a concrete slab or paved area.

The JACARANDA STUDIO features include:

• Dimensions: 3132mm Wide x 6048mm Deep x 2600mm High (add 140mm for HD floor kit)
• Single colonial style glazed door
• Colorbond ‘MONUMENT’ roof panels
• Two Windows, 630mm opening with tinted acrylic glazing included standard
• Termite resistant pine 42mm x 35mm framing
• Wind rating: Cyclone rated! W60 / N4 / C2 – 60m sec or 219 kmh winds
• Canadian Western Red Cedar 18mm thick VJ cladding
• Pre-assembled panels for quick and easy assembly
• Heavy Duty Floor Kit available as optional extra
• 10 year warranty
• Delivery to your address available
• NOTE: WA, Qld, Vic and SA buyers, please check with your council before purchase, this studio is over 10 square metres. We recommend installing this as a “shed” or storage space thus not usually requiring a building permit.

List of dimensions:

• Internal Dimensions: 3000 x 5916 x 2580 Front x Side x Height (mm)
• External of Frame Dimensions: (Concrete Slab Size) 6000 x 3084 mm (making slab smaller than cladding size gives a rebate, this allows rain to run off walls and not enter the studio)
• External Cladding Dimensions:  6048 x 3132 mm
• External Roof Dimensions: 3432 x 6368 x 2730 Front x Side x Peak Height (mm)
• Door Opening Dimensions: 1850 x 840 Height x Width (mm)
• Wall Height: 2020mm
